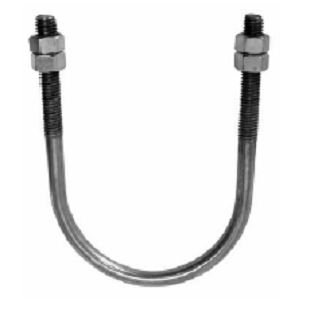

Size Range: 1⁄2" through 12"
Material: Stainless steel U-bolt and four finished hex nuts
Finish: 304 stainless steel
Service: Recommended for support, or guide of heavy loads;often employed in power, process plant and marine service
Approvals: Complies with Federal Specification A-A-1192A (Type 24),WW-H-171-E (Type 24), ANSI/MSS SP-69 and MSS SP-58 (Type 24).
Ordering: Specify pipe size x rod size (e.g., 6 x 5⁄8), figure number and name.If hex nuts are not required, specify “without hex nuts”.

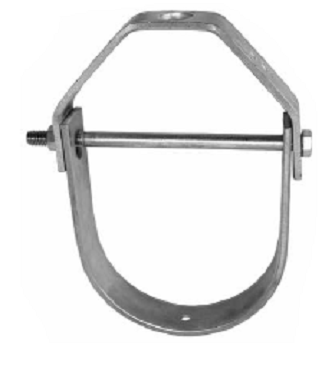

• Size Range: 1⁄2" through 12"
• Material: 304 stainless steel
• Service: Recommended for the suspension of stationary pipe lines.
• Maximum Temperature: 650° F
• Approvals: Complies with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1),ANSI/MSS SP-69 and MSS SP-58 (Type 1).
• Installation: Hanger load nut above clevis must be tightened securely to assure properhanger performance
• .Adjustment: Vertical adjustment without removing pipe may be made from 3⁄8" through 5 1⁄8",varying with the size of clevis. Tighten upper nut after adjustment.
• Features:• Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt,thus bending of bolt is minimized.• Sizes 5" and up have rod and two nuts instead of bolt and nut; thread length on clevisrod is such that the thread locks the nuts in place, and threads are not in shear plane.

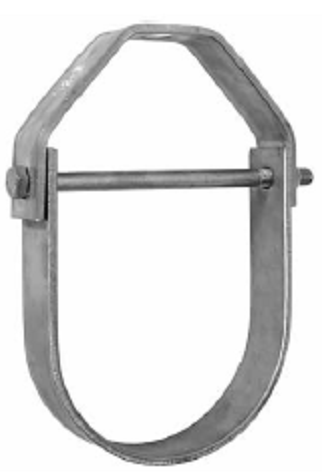

• Size Range: 4" through 12" ductile or cast iron pipe
• Material: 304 stainless steel
• Service: Recommended for the suspension of stationary ductile iron or cast iron pipe.
• Approvals: Complies with Federal Specification A-A-1192A (Type 1)WW-H-171-E (Type 1), ANSI/MSS SP-69 and MSS SP-58 (Type 1)
• Installation: Hanger rod nut above clevis must be tightened securely to assureproper hanger performance.
• Adjustment: Vertical adjustment without removing pipe may be madefrom 1 15⁄16" through 3 3⁄16", varying with the size of the clevis. Tighten uppernut after adjustment.
• Ordering: Specify pipe size, figure number and name.
• Note: Figure 590 typically feature a Figure 260SS Top Component.

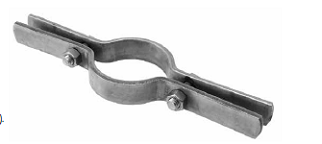

• Size Range: 1⁄2" through 12"
• Material: 304 stainless steelService: For support of stationary steel pipe risers or conduit.
• Maximum Temperature: 650° F
• Approvals: Complies with Federal Specification A-A-1192A (Type 8)WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8).
• Installation: Clamp is fitted and bolted below a coupling, hub orwelded lugs on steel pipe (2 lugs up to 3" pipe, 4 lugs up to 12" pipe).Bolt torques should be per industry standards (see page 248).Clamp is designed for standard steel pipe O.D. and this must beconsidered in sizing the riser for other types of piping.

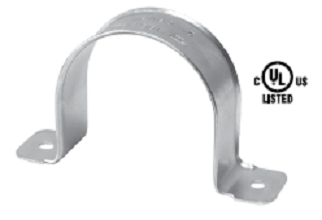

• Size Range: 3⁄4" through 2"
• Finish: Zinc Plated Steel (Hot-Dip Galvanized optional)
• Service: Hanger for CPVC pipe in the horizontal position on the side of structuralwood beams and Steel 20 Ga. (min) with hanger tab in the upward position only (Fig. A).It can also be used as a guide to limit movement of vertical CPVC pipe with the tabin the horizontal position.
• Approvals: UL and ULC Listed.
• Installation:• Place hanger over pipe.• Secure hanger to mounting surface with screws provided.• Steel applications require one (1) #14 x 1" hex washer head self-drilling TEK screw.Not Supplied. Part Number STD-0090.
• Features:• Beveled edge design helps protect the CPVC pipe from any rough surface.• Easily attaches to wood structure with #10 x 1" hex washer head self threadingscrew supplied with product. No pre-drilling required.
• Ordering: Specify CPVC pipe size, figure number and description.

• Size Range: 3⁄4" through 2"
• Finish: Zinc Plated Steel (Hot-Dip Galvanized optional)
• Service: Hanger for CPVC pipe in the horizontal position on the bottomand side of structural wood beams, composite beams and Steel 20 Ga. (min.)(Fig. A, C respectively). Can be used as a restrainer when installed on top ofstructural wood beams (Fig. B), for limiting pipe movement due to thrustloads during sprinkler system start-up. It can also be used as a guide tolimit movement for pipe in the vertical position. When used on compositewood beams, web thickness must be 3/8" or greater

• Approvals: UL and ULC Listed.
• Features:• Beveled edge design helps protect the CPVC pipe from any rough surface.• Easily attaches to wood structure with #10 x 1" hex washer head self threadingscrew supplied with product. No pre-drilling required

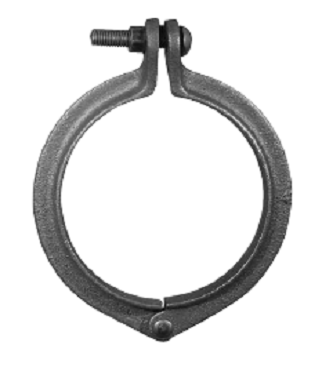

• Size Range: 3⁄8" through 8"
• Material: Malleable iron
• Finish: Plain
• Service: Recommended for suspension of non-insulated stationary pipe lines orconduit. May be used with rod socket Fig. 110R or turnbuckle adjuster Fig. 114.
• Maximum Temperature: 450° F
• Approvals: Complies with Federal Specification A-A-1192A (Type 11)WW-H-171-E (Type 11), ANSI/MSS SP-69 and MSS SP-58 (Type 11).
• Features:• Permits installation before or after pipe is in place.• Provides economical installation.• Permits use of universally adaptable parts.
• Ordering: Specify pipe size, figure number, name.FIGURE

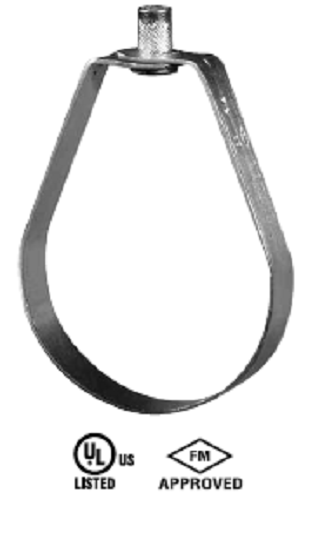

• Size Range: 1⁄2" through 8"
• Material: Carbon steel
• Finish: Strap is Pre-Galvanized Zinc Material. Nut is Zinc Plated.
• Service: Recommended for suspension of non-insulated stationary pipe line.
• Maximum Temperature: 650° F
• Approvals: Complies with Federal Specification A-A-1192A (Type 10)WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type 10).UL Listed and FM Approved (Sizes 3⁄4" - 8").
• Features:• Threads are countersunk so that they cannot become burred or damaged.• Knurled swivel nut provides vertical adjustment after piping is in place.• Captured swivel nut in the 1⁄2" through 6" sizes. The capture is permanent inthe bottom portion of the band, allowing the hanger to be opened duringinstallation if desired, but not allowing the nut to fall completely out.
• Ordering: Specify size, figure number and name.
• Note: The acceptability of galvanized coatings at temperatures above 450°F is at thediscretion of the end user.

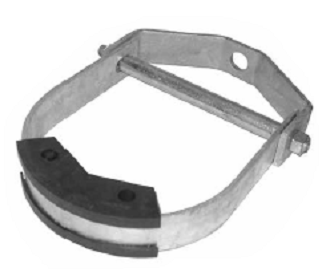

• Size Range: 1/2" through 12" pipe and accommodates up to 2" of insulation.
• Material: Carbon steel with high impact glass reinforced polypropylene saddle andcarbon steel pipe spacer.
• Finish: Plain, 8" & Smaller: Zinc Plated (Hot-Dip Galvanized optional), 10" & Larger: Hot-DipGalvanized with Zinc Plated Bolts & Nuts, or Primed, also available in Plastic or Epoxy Coated.
• Service: Recommended for the suspension of stationary insulated chilled or hotwater pipe lines
• .Maximum Temperature: 40° F to 200˚ F
• Features: V-Block design cradles pipethrough out the entire erection process.Clevis bolt spacer included as standardkeeps the clevis lower strap from collapsing.Eliminates:• Wood blocks and standard shields• Costly calcium silicate inserts• Re-leveling of piping at eachindividual hanger after insulationis completed.

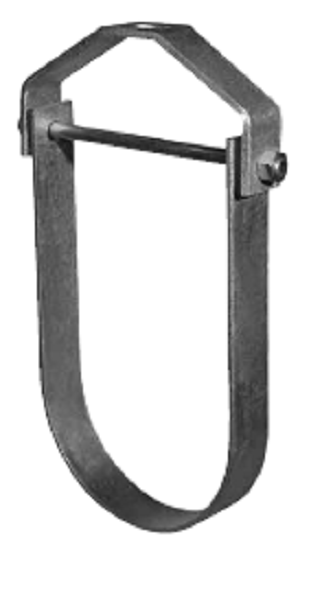

• Size Range: 3⁄4" through 12"
• Material: Carbon steel
• Finish: Plain, 8" & Smaller: Zinc Plated (Hot-Dip Galvanized optional), 10" & Larger: Hot-DipGalvanized with Zinc Plated Bolts & Nuts or Epoxy Coated
• Service: Recommended for suspension of insulated stationary pipe lines.
• Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F
• Approvals: Complies with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1),ANSI/MSS SP-69 and MSS SP-58 (Type 1).
• Installation: Hanger load nut above clevis must be tightened securely to assure properhanger performance.
• Adjustment: Vertical adjustment is provided, varying with the size of the clevis. Tightenupper nut after adjustment.
• Features:• Designed for 2" of insulation on 3⁄4" through 1 1⁄2" pipe and 4" of insulation on 2" and larger pipe.• When properly installed, clevis bolt is outside the insulation.

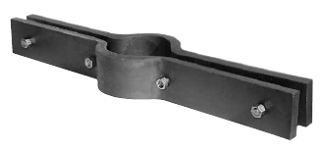

• Size Range: 2" through 24"
• Material: Carbon steel (CS), Alloy (A), or Stainless Steel (SS)
• Finish: Plain or Hot-Dip Galvanized with Zinc Plated Fasteners
• Maximum Temperature: Galvanized 450° F, 650° F (CS),950° F (A) and 1,000° F (SS)
• Service: Riser clamps are used for the support of verticalpiping. Load is carried by shear lugs which are welded to thepipe. Shear lugs provided upon request. Local pipe wall stressevaluation available upon request.
• Approvals: Complies with Federal Specification A-A-1192A (Type 42),ANSI/MSS SP-69 and MSS SP-58 (Type 42).
• Ordering: Specify pipe size, material, figure number, name and finish.
• Note: If different loads or dimensions are required, refer to Fig. 40 SDspecial design riser clamp.

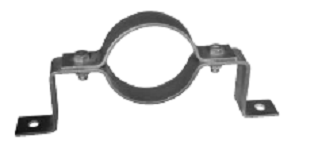

• Size Range: 3⁄4" through 8"
• Material: Carbon steel
• Finish: Plain or Hot-Dip Galvanized with Zinc Plated Fasteners
• Service: For use in supporting piping away from wall or floor.
• Maximum Temperature: Plain 650° F, Galvanized 450° F
• Ordering: Specify pipe size, figure number, name and finish
• Service: For use in supporting horizontal piping away fromthe wall or floor (not to be used as a riser type support
