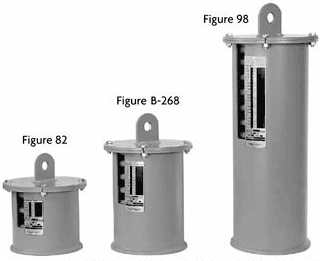

Anvil -Triple Spring and Quadruple Spring Triple -CR and Quadruple -CR Spring ( Corrosion Resistant)
Advantages of a Protective Coating
- Protects from a wide range of corrosivers
- Does not affect the flex life of the spring
- Recommended for ambient temperatures up to 200"F
Anvil EPS Constant Support
- DETERMINE TOTAL LOAD (TL)
- MOVEMENT = ACTUAL TRAVEL (AT)
- TOTAL TRAVEL (TT) ALWAYS > ACTUAL TRAVEL
- TT = AT + > (20% AT or 1”), ROUNDED UP TO NEXT ½”
- SELECT SIZE FROM CHART TO ACCOMMODATE TT & TL
- SELECT TYPE BASED ON PHYSICAL ATTACHMENT
- DETERMINE J-rod (TYPES A thru E) & K-hole (TYPES B & C)

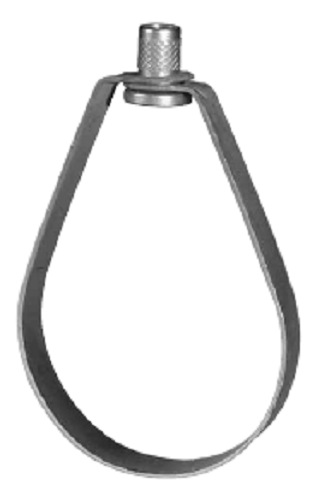

Anvil COPPER TUBING HANGERS 20 Fig. CT-69 Adjustable Swivel Ring
Size Range: 1⁄2" through 4"
Material: Carbon steel
Finish: Copper plated
Service: Recommended for suspension of non-insulated stationary copper tube.
Approvals: Complies with Federal Specification A-A-1192A (Type 10)WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type 10).Features:• Threads are countersunk so that they cannot become burred or damaged.• Knurled swivel nut provides vertical adjustment after piping is in place.• Captured swivel nut will not fall off.
Ordering: Specify nominal tube size, figure number, name and finish.
Note: Metric nut available upon request.
Material: Carbon steel
Finish: Copper plated
Service: Recommended for suspension of non-insulated stationary copper tube.
Approvals: Complies with Federal Specification A-A-1192A (Type 10)WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type 10).Features:• Threads are countersunk so that they cannot become burred or damaged.• Knurled swivel nut provides vertical adjustment after piping is in place.• Captured swivel nut will not fall off.
Ordering: Specify nominal tube size, figure number, name and finish.
Note: Metric nut available upon request.

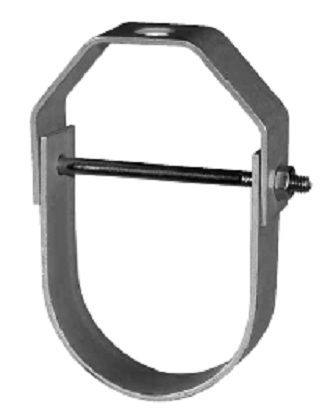

Anvil COPPER TUBING HANGERS Fig. CT-65 Light Duty Adjustable Clevis
Size Range: 1⁄2" through 4"
Material: Carbon steel
Finish: Copper plated
Service: Recommended for suspension of non-insulated, stationary copper tube.
Approvals: Complies with Federal Specification WW-H-171-E (Type 12).
Installation:(1) Adjustment may be made either before or after tubing is in placewithout temporary support of pipe.
(2) Hanger rod and nuts may be locked into position after adjustmentby use of the upper nut.
Features: Provides for adjustment up to 1 7⁄8".
Ordering: Specify nominal tube size, figure number, name and finish
Material: Carbon steel
Finish: Copper plated
Service: Recommended for suspension of non-insulated, stationary copper tube.
Approvals: Complies with Federal Specification WW-H-171-E (Type 12).
Installation:(1) Adjustment may be made either before or after tubing is in placewithout temporary support of pipe.
(2) Hanger rod and nuts may be locked into position after adjustmentby use of the upper nut.
Features: Provides for adjustment up to 1 7⁄8".
Ordering: Specify nominal tube size, figure number, name and finish

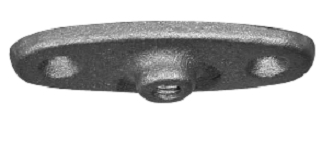

Anvil COPPER TUBING HANGERS Fig. CT-128R Rod Threaded Ceiling Flange
Size Range: 3⁄8" and 1⁄2"
Material: Malleable iron
Finish: Copper plated
Service: Recommended for attachment to wood beams or ceiling.
Ordering: Specify rod size, figure number, name
Material: Malleable iron
Finish: Copper plated
Service: Recommended for attachment to wood beams or ceiling.
Ordering: Specify rod size, figure number, name

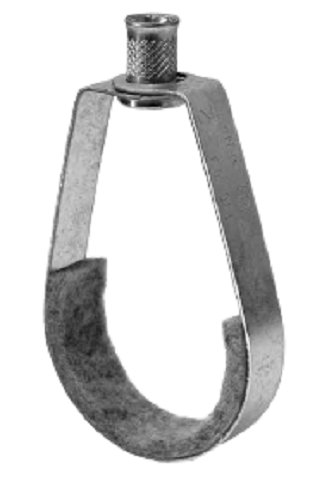

Anvil COPPER TUBING HANGERS Fig. 69F Adjustable Swivel Ring, Felt Lined
Size Range: 1⁄2" through 6" copper tube
Material: Carbon steel and felt with adhesive backing
Finish: Strap is Pre-Galvanized Material. Nut is Zinc Plated.
Service: Recommended for suspension of non-insulated stationary copper tubing.Maximum Temperature: 120° F
Approvals: Complies with Federal Specification A-A-1192A (Type 10)WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type 10).
Features:• The layer of felt separates the copper tubing from the steel ring for electrolyticresistance and also minimizes noise and vibration.• Threads are countersunk so they cannot become burred or damaged.• Knurled swivel nut provides vertical adjustment after tubing is in place.• The captured nut is permanent in the bottom portion of band, allowing the hangerto be opened during installation if desired, but not allowing the nut to fall out
Material: Carbon steel and felt with adhesive backing
Finish: Strap is Pre-Galvanized Material. Nut is Zinc Plated.
Service: Recommended for suspension of non-insulated stationary copper tubing.Maximum Temperature: 120° F
Approvals: Complies with Federal Specification A-A-1192A (Type 10)WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type 10).
Features:• The layer of felt separates the copper tubing from the steel ring for electrolyticresistance and also minimizes noise and vibration.• Threads are countersunk so they cannot become burred or damaged.• Knurled swivel nut provides vertical adjustment after tubing is in place.• The captured nut is permanent in the bottom portion of band, allowing the hangerto be opened during installation if desired, but not allowing the nut to fall out

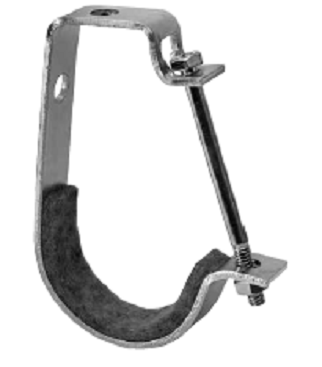

Anvil COPPER TUBING HANGERS Fig. 67F Copper Tube Felt Lined Hanger
Size Range: 1⁄2" through 6" copper tube
Material: Carbon steel and felt with adhesive backingFinish: Zinc Plated (Hot-Dip Galvanized optional)
Service: Can be suspended by hanger rod or attached to wall. “T” slot in hangerpermits side bolt to be installed after installation and setting of pipe.Maximum Temperature: 120˚F
Approvals: Complies with Federal Specification A-A-1192A (Type 5),ANSI/MSS SP-69 and MSS SP-58 (Type 5)
.Features: The layer of felt separates the copper tubing from the steel strap forelectrolytic resistance and also minimizes noise and vibration.Components: Strap and bolt with nut – assembled.
Ordering: Specify felt hanger size, figure number and name.
Material: Carbon steel and felt with adhesive backingFinish: Zinc Plated (Hot-Dip Galvanized optional)
Service: Can be suspended by hanger rod or attached to wall. “T” slot in hangerpermits side bolt to be installed after installation and setting of pipe.Maximum Temperature: 120˚F
Approvals: Complies with Federal Specification A-A-1192A (Type 5),ANSI/MSS SP-69 and MSS SP-58 (Type 5)
.Features: The layer of felt separates the copper tubing from the steel strap forelectrolytic resistance and also minimizes noise and vibration.Components: Strap and bolt with nut – assembled.
Ordering: Specify felt hanger size, figure number and name.

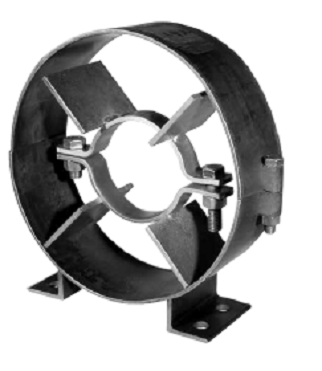

Anvil COPPER TUBING HANGERS Fig. CT-255 Copper Tubing Alignment Guide
Size Range: 1" through 4"
Material: Carbon steel
Finish: Plain or Hot-Dip Galvanized Housing with Zinc Plated Bolts and Nuts.(Hot-Dip Galvanized optional) Copper Plated Finish on Spider Clamp.
Service: For maintaining alignment of tubing through its axial expansionand contraction cycles. Normally, two or more pipe alignmentguides are used on a single tubing run to avoid a pivoting effectwithin the tubing system. Consult the Expansion Joint ManufacturersAssociation or the Copper Tube Manufacturers for additional guidelinesof spacing requirements of intermediate guides. Supports are usuallyrequired between intermediate guides to comply with standardsupport practices.Maximum
Temperature: 400° F
Material: Carbon steel
Finish: Plain or Hot-Dip Galvanized Housing with Zinc Plated Bolts and Nuts.(Hot-Dip Galvanized optional) Copper Plated Finish on Spider Clamp.
Service: For maintaining alignment of tubing through its axial expansionand contraction cycles. Normally, two or more pipe alignmentguides are used on a single tubing run to avoid a pivoting effectwithin the tubing system. Consult the Expansion Joint ManufacturersAssociation or the Copper Tube Manufacturers for additional guidelinesof spacing requirements of intermediate guides. Supports are usuallyrequired between intermediate guides to comply with standardsupport practices.Maximum
Temperature: 400° F

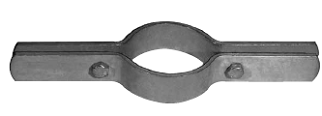

Anvil COPPER TUBING HANGERSFig. CT-121 Copper Tubing Riser Clamp
Size Range: 1⁄2" through 4"
Material: Carbon steel
Finish: Copper plated
Service: Recommended for support and steadying ofcopper tube risers, either insulated or non-insulated.This product is not intended for use with hanger rods.
Approvals: Complies with Federal Specification A-A-1192A(Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 andMSS SP-58 (Type 8).
Service: For support and steadying of copper tubing risers.Installation: Clamp is fitted and bolted preferably below acoupling or fitting on the tubing. Do not over tighten bolts.
Features: Rounded ears provide greater safety for personnel.
Ordering: Specify tube size, figure number, name.
Material: Carbon steel
Finish: Copper plated
Service: Recommended for support and steadying ofcopper tube risers, either insulated or non-insulated.This product is not intended for use with hanger rods.
Approvals: Complies with Federal Specification A-A-1192A(Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 andMSS SP-58 (Type 8).
Service: For support and steadying of copper tubing risers.Installation: Clamp is fitted and bolted preferably below acoupling or fitting on the tubing. Do not over tighten bolts.
Features: Rounded ears provide greater safety for personnel.
Ordering: Specify tube size, figure number, name.
