Finish: Plain or Zinc Plated (Hot-Dip Fasteners Not Available)

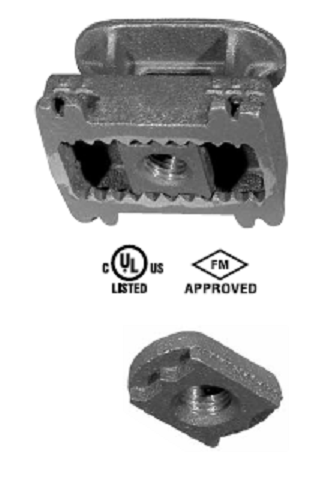

Service: Upper attachment for suspending pipe, shafting, motors and similarequipment from a concrete ceiling; especially suitable where rod sizes cannot bereadily determined in advance.
Features:• Cast body prevents concrete seepage.• Opening in top of insert provides for use of reinforcing rods up to 7⁄8" diameter. Sidesof insert are recessed for reinforcing rods up to 1" diameter.• Low height, broad flat bottom and widely separated nail slots minimize displacementduring construction.• The nut, held in place by V-type teeth on both insert and nut, can be raised and movedfrom side to side providing for lateral adjustment.• Rod is locked in place by screwing it firmly against the top of the recess.• One body size.

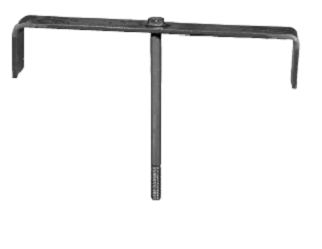

Anvil CONCRETE INSERTS & ATTACHMENTS Fig. 284 Metal Deck Hanger
Size Range: 3⁄8" through 3⁄4"
Material: Carbon steel
Finish: Plain
Service: Recommended for suspending pipe or conduit in metalconcrete deck forms for a variety of rod sizes. May be used with a rodcoupling such as the Fig. 135 or 136 to allow for extended rod lengths.
Features:• L and H can be specified for a custom fit if your particular deck doesnot accommodate type A, B, or C.• Standard 6" long UNC bolt is welded to bracket to ensure assemblyremains intact during shipment.
Ordering: Specify Figure 284, design type (A, B, C) and bolt diameter.If your specific deck will not fit one of the design types and/or a differentbolt size is required, specify leg height (H), opening (L) and bolt size.FIG

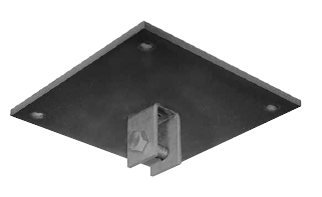

Service: Structural attachment to concrete ceiling lug is usedin conjunction with Fig. 299 (see page 103) forged steel clevisand anchors of sufficient strength to hold the desired load.
Ordering: Specify rod size, figure number, name and finish.
Anvil HANGER RODS Fig. 146 Continuous Threaded Rod
Size Range: 1⁄4" through 1 1⁄2" Stocked in six, ten, and twelve footlengths. Other even foot lengths can be furnished to order.
Material: Carbon steel or Stainless Steel Gr 304
Threads: National Coarse (USS), rod threaded complete length.
Finish: Plain or Zinc Plated (Hot-Dip Galvanized optional)
Maximum Temperature: 650° F
Ordering: Specify rod diameter and length, figure number,name and finish
Note: The acceptability of galvanized coatings at temperaturesabove 450°F is at the discretion of the end user.

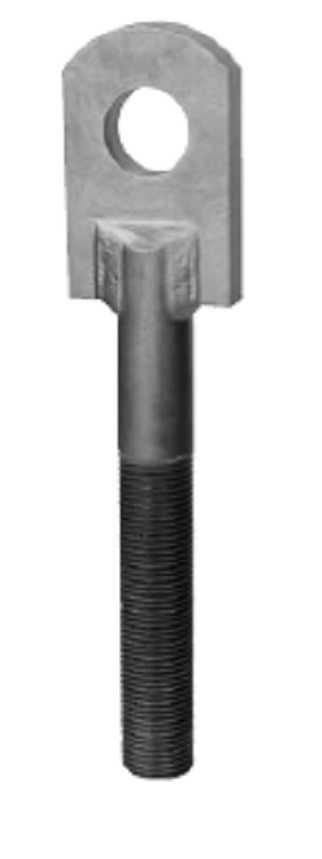

Anvil HANGER RODS Fig. 148 Rod with Eye End
Size Range: 2 3⁄4" through 5"
Material: Carbon steel
Finish: Plain or Zinc Plated (Hot-Dip Galvanized optional)
Service: A large diameter rod with eye end for load ratings thru 184,000 pounds.
Ordering: Specify rod size, figure number, name, finish and “L” dimension. Indicateif desired thread length is other than standard.
Note: The acceptability of galvanized coatings at temperatures above 450°F is at thediscretion of the end user.

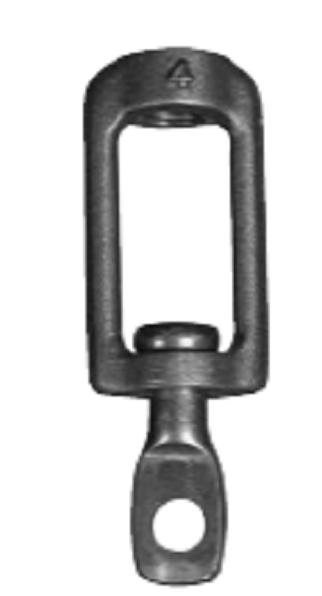

Anvil ROD ATTACHMENTS Fig. 114 Turnbuckle Adjuster
Size Range: 1⁄4" through 3⁄4"
Material: Malleable iron
Finish: Plain
Installation: Normally used with split pipe ring, Fig. 108, see page 36.
Approvals: Complies with Federal Specification A-A-1192A (Type 15),WW-H-171-E (Type 15), ANSI/MSS SP-69 and MSS SP-58 (Type 15).
Maximum Temperature: 450° F
Features:• An economical and simple means of obtaining verticaladjustment and flexibility at the pipe connection.• Permits adjustment after pipe is in place.
Ordering: Specify rod size, figure number and name.

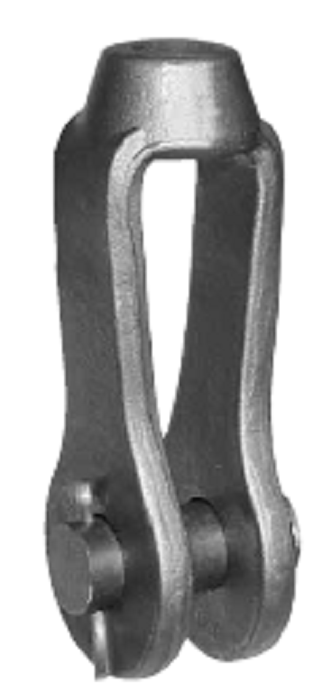

Anvil ROD ATTACHMENTS Fig. 299 Forged Steel Clevis
Size Range: 3⁄8" through 4"
Material: Forged steel
Finish: Plain or Zinc Plated (Hot-Dip Galvanized optional)
Service: For use on high temperature piping installations.
Approvals: Complies with Federal Specification A-A-1192A (Type 14), WW-H-171-E (Type 14),ANSI/MSS SP-69 and MSS SP-58 (Type 14).

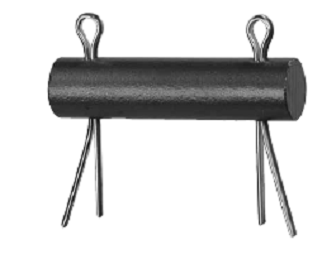

Features:• Available with pin and cotter pins, if required.
Ordering: Specify rod size, figure number, name and finish. If pin and cotter pins are required,specify “with pin”. If other than standard combination of clevis number and rod size is required,specify clevis number, special rod tapping size, pin size, grip.
Note: The acceptability of galvanized coatings at temperatures above 450°F is at the discretion of the end user
Note: The acceptability of galvanized coatings at temperatures above450°F is at the discretion of the end user.

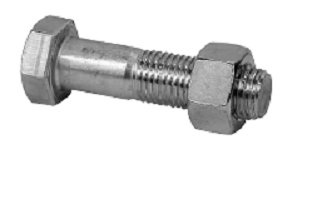

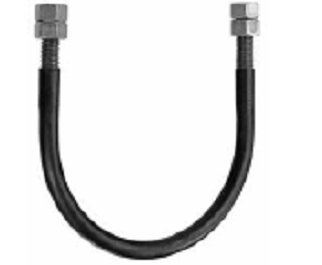

Anvil BOLTS, NUTS, PINS & U-BOLTS Machine Bolts
Size Range: American Standard hexagon head bolts with AmericanStandard hexagon nuts are stocked in sizes 3⁄8" through 1 1⁄8"UNC thread series. Other sizes are available upon request.Lengths of bolts are measured from under head to extreme point.
