Service: For support of stationary steel pipe risers, cast iron pipeor conduit. This product is not intended for use with hanger rods.For this application refer to Fig. 40 Riser Clamp, page 49.
Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F
Approvals: Complies with Federal Specification A-A-1192A (Type 8)WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8).UL, ULC Listed (Sizes 1 1⁄2" - 8").
Installation: Clamp is fitted and bolted preferably below a coupling,hub or welded lugs on steel pipe. Bolt torques should be per industrystandards (see page 257). Clamp is designed for standard steel pipe O.D.and this must be considered in sizing the riser for other types of piping.
Ordering: Specify pipe size, figure number, name and finish

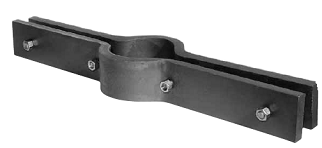

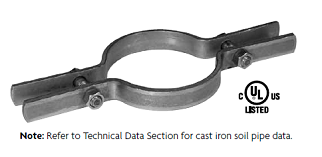

Anvil STEEL PIPE CLAMPS Fig. 40 Riser Clamp – Standard
Size Range: 2" through 24"
Material: Carbon steel (CS), Alloy (A), or Stainless Steel (SS)
Finish: Plain or Galvanized
Maximum Temperature: Galvanized 450° F, 650° F (CS),950° F (A) and 1,000° F (SS)
Service: Riser clamps are used for the support of verticalpiping. Load is carried by shear lugs which are welded to thepipe. Shear lugs provided upon request. Local pipe wall stressevaluation available upon request.
Approvals: Complies with Federal Specification A-A-1192A (Type 42),ANSI/MSS SP-69 and MSS SP-58 (Type 42).
Ordering: Specify pipe size, material, figure number, name and finish.
Note: If different loads or dimensions are required, refer to Fig. 40 SDspecial design riser clamp.
Service: For support of stationary steel pipe risers, cast iron pipeor conduit. This product is not intended for use with hanger rods.For this application refer to Fig. 40 Riser Clamp, page 49.
Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F
Approvals: Complies with Federal Specification A-A-1192A (Type 8)WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8).UL, ULC Listed (Sizes 1 1⁄2" - 8").
Installation: Clamp is fitted and bolted preferably below a coupling,hub or welded lugs on steel pipe. Bolt torques should be per industrystandards (see page 257). Clamp is designed for standard steel pipe O.D.and this must be considered in sizing the riser for other types of piping.
Ordering: Specify pipe size, figure number, name and finish

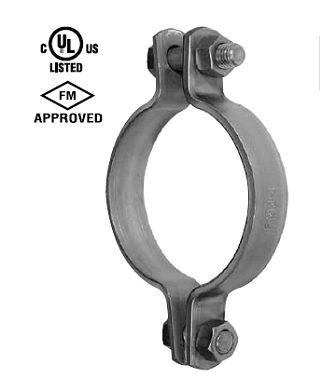

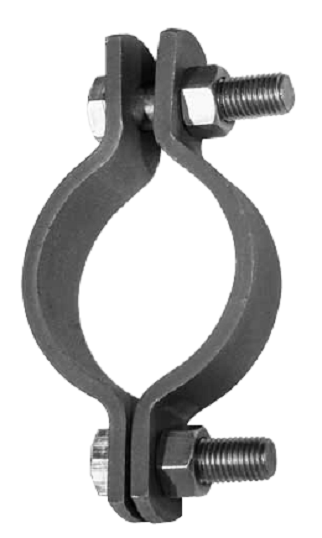

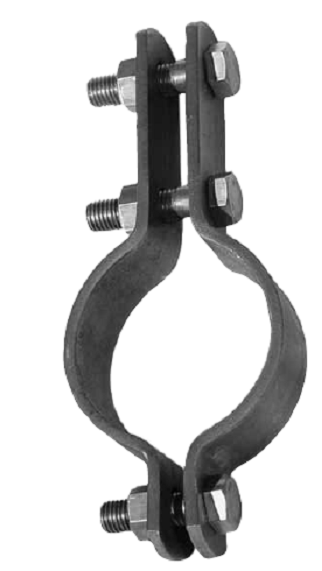

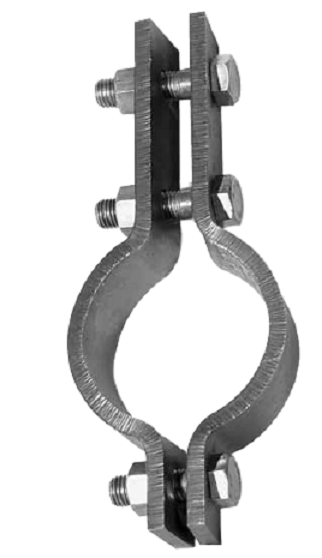

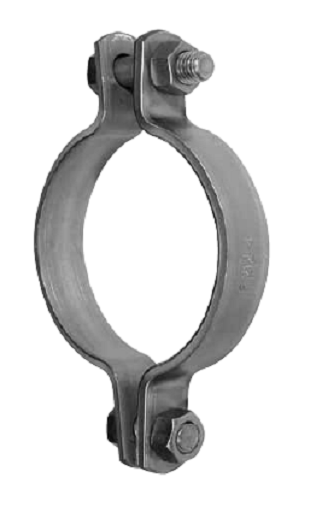

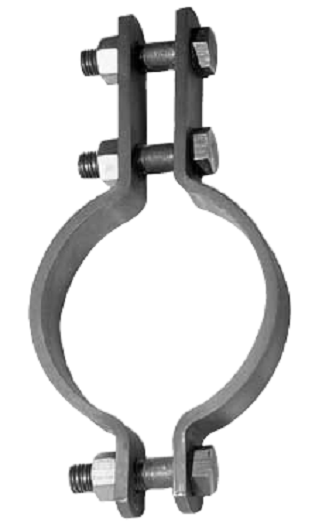

Service: Recommended for suspension of pipe requiring insulation within the limitationof temperature and loads shown below.
Maximum Temperature: Plain 750° F, Galvanized 450° F
Approvals: Complies with Federal Specification A-A-1192A (Type 3)WW-H-171-E (Type 3), ANSI/MSS SP-69 and MSS SP-58 (Type 3).
Features:• Accommodates up to 4" thick insulation.•
.Ordering: Specify pipe size, figure number, name and finish.
Anvil socket clamps Fig. 595 Socket Clamp for Ductile Iron or Cast Iron Pipe
Size Range: 4" through 24"
Material: Two carbon steel half bands and four bolts and nuts.
Finish: Plain or Galvanized
Service: Clamps ductile or cast iron mechanical joint piping ormechanical joint or socket joint fittings together to preventseparation or distortion of pipe line under excessive water pressure.
Approvals: Complies with Federal Specification A-A-1192A (Type 8),ANSI/MSS SP-69 and MSS SP-58 (Type 8). Complies with therequirements of the National Fire Protection Association StandardNFPA-24 for Outside Protection.
Ordering: Specify pipe size, figure number, name and finish.
